S-HyNic Linker (DMF Soluble)
Description
The S-HyNic heterobifunctional crosslinker is fundamental to the SoluLINK bioconjugation technology. S-HyNic reacts with primary amines on proteins (through lysine amino acids) or amino-modified oligonucleotides or surfaces, introducing a HyNic linker that forms stable covalent conjugates with biomolecules possessing 4FB linkers.
Specifications
| Label/Modifier Type | HyNic |
|---|---|
| Reactivity | 4FB |
| Recommended Storage | Desiccated: -15° to -25°C |
| Applications | Antibody Labeling, Antisense/RNAi, Aptamers |
| Other Name(s) | SoluLINK Bioconjugation |
Documents
- Protein Desalting Protocol
- HyNic-Protein MSR Calculator
- HyNic Protein MSR Instructions
- Oligonucleotide Buffer Exchange and Desalting Protocol
- Protein Modification Calculator
- User Guide
- Safety Data Sheet
- Troubleshooting Guide – Bioconjugation
- Bradford Assay Protocol
- BCA Protein Assay Protocol
- Download CoA
- Datasheet
Citations
Powered by Bioz See more details on BiozTechnical Information
Introduction to SoluLINK Bioconjugation Technology
This core technology is based on the formation of a stable bond formed from an aromatic hydrazine and an aromatic aldehyde. S-HyNic 1 (succinimidyl 6-hydrazinonicotinate acetone hydrazone, SANH) is used to incorporate aromatic hydrazine linkers on biomolecules. S-HyNic is an amino-reactive reagent that directly converts amino groups on biomolecules and surfaces to HyNic groups. S-4FB 2 (succinimidyl 4-formylbenzoate, SFB) is used to convert amino groups to aromatic aldehydes (4-formylbenzamide (4FB) groups). Addition of a HyNic-modified biomolecule to a 4FB-modified biomolecule or surface directly leads to the formation of the conjugate (Figure 1). The conjugate bond is stable to 92°C and pH 2.0-10.0. The recommended pH for antibody conjugation is 6.0. Unlike thiol-based conjugation protocols where reducing reagents are required that that can compromise the activity of proteins by cleaving disulfide bonds, the HyNic-4FB conjugation couple leaves disulfide bonds intact. No oxidants, reductants or metals are required in the preparation of conjugate.

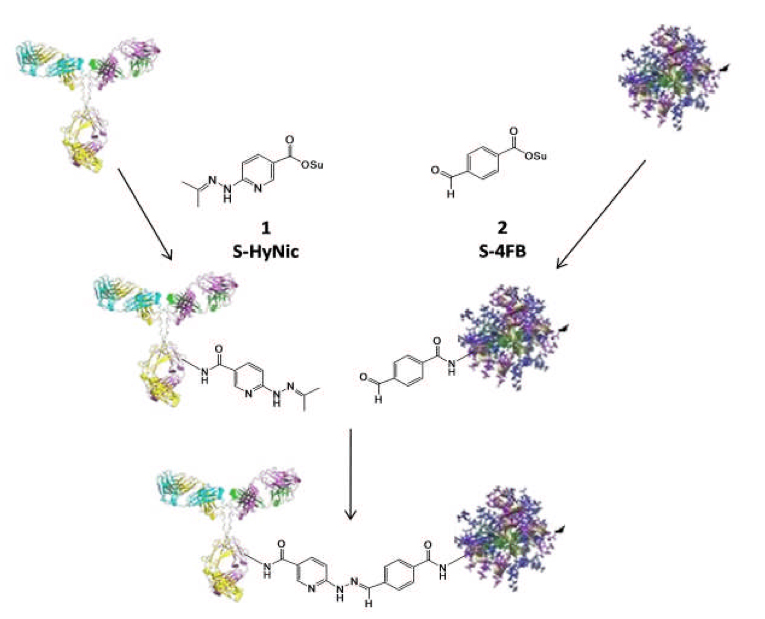

Figure 1: Schematic representation of the SoluLINK bioconjugation chemistry where an antibody is modified with S-HyNic to incorporate HyNic groups and a second protein is modified with S-4FB to incorporate 4FB groups. Conjugate is formed directly by simply mixing the HyNic-modified antibody with the 4FB-modified proteins.
Further enhancing the many advantages of the HyNic/4FB conjugation couple is the discovery by Dirksen et al that showed that aniline catalyzes the formation of this Schiff’s base. This is especially effective for large biomolecule conjugations. In the case of antibody-protein conjugations the addition of 10 mM TurboLINK Catalyst Buffer (aniline buffer) to the reaction mixture converts >95% of the antibody to conjugate in ~2 hours using 1-2 mole equivalents of second protein.
The HyNic-4FB conjugation couple is chromophoric- the conjugate bond absorbs at 354 nm and has a molar extinction coefficient of 29,000 L/(mol*cm). This allows (1) real time spectrophotometric monitoring of a conjugate reaction, (2) ability to visualize the conjugate during chromatographic purification using a UV or photodiode array detector and (3) quantification of conjugation.
